Phasor plot

An introduction to plotting phasor coordinates.

The phasorpy.plot.PhasorPlot class is used to plot phasor coordinates as scattered points, lines, two-dimensional histograms, and contours. The plots are supplemented with universal semicircles, polar grids, polar cursors, component mixture indicators, and manual annotations.

Import required modules, functions, and classes:

import math

import numpy

from phasorpy.plot import PhasorPlot

numpy.random.seed(42)

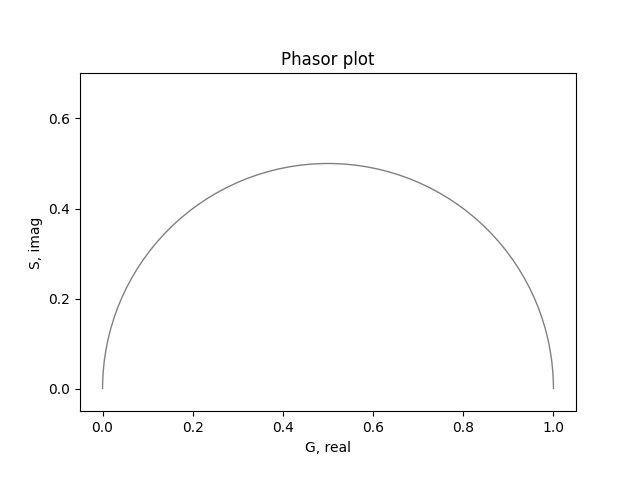

Empty phasor plot

Create an empty phasor plot, showing the first quadrant and the universal semicircle:

plot = PhasorPlot()
plot.show()

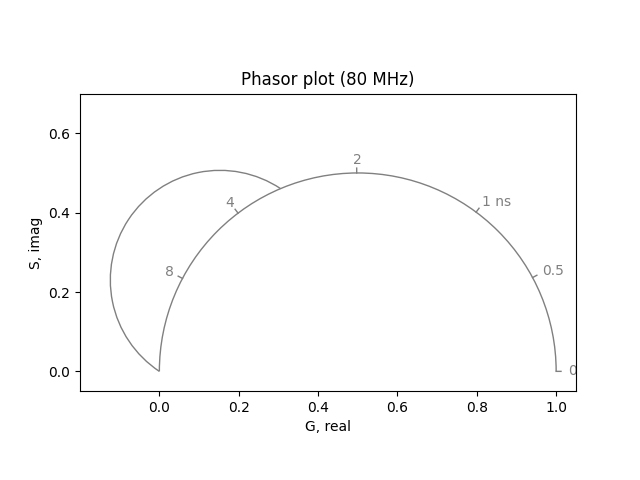

Universal semicircle

Create a phasor plot at a frequency of 80 MHz and custom axis limits. Add a second, transformed universal semicircle:

plot = PhasorPlot(frequency=80.0, xlim=(-0.2, 1.05))
plot.semicircle(polar_reference=(0.9852, 0.5526))
plot.show()

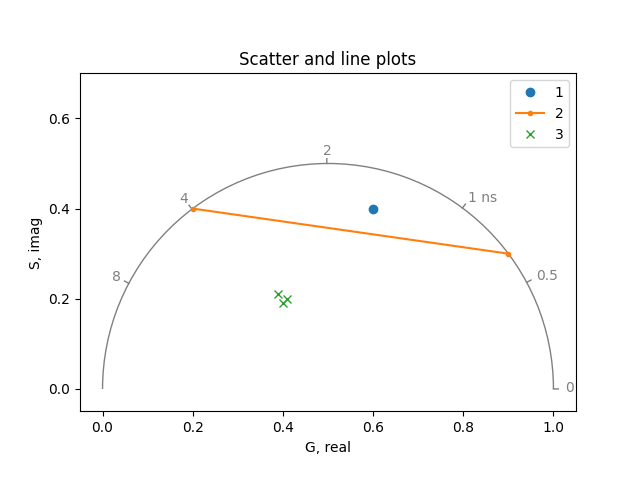

Scatter and line plots

Plot phasor coordinates as scatter or lines:

plot = PhasorPlot(frequency=80.0, title='Scatter and line plots')
plot.plot(0.6, 0.4, label='1')
plot.plot([0.2, 0.9], [0.4, 0.3], '.-', label='2')
plot.plot([0.39, 0.4, 0.41], [0.21, 0.19, 0.2], 'x', label='3')
plot.show()

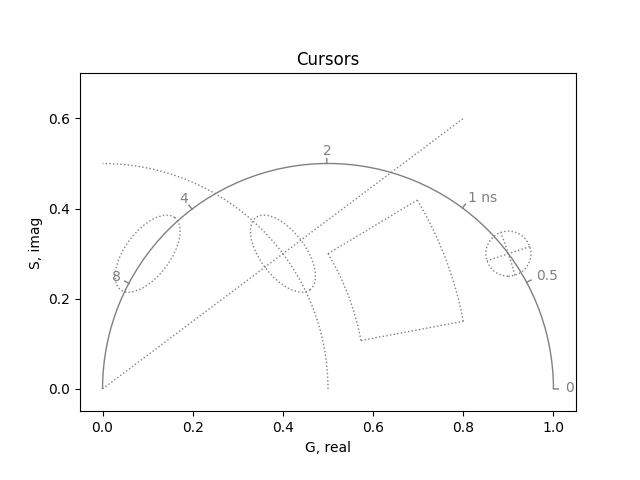

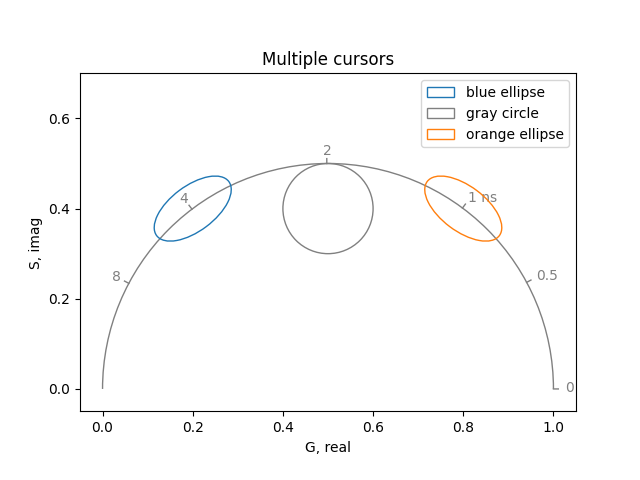

Cursors

Highlight specific polar coordinates and ranges thereof using phasor coordinates:

plot = PhasorPlot(frequency=80.0, title='Cursors')
plot.cursor(0.4, 0.3)
plot.cursor(0.5, 0.3, 0.8, 0.15)
plot.cursor(0.9, 0.3, radius=0.05)
plot.cursor(0.4, 0.3, radius=0.05, radius_minor=0.1)
plot.cursor(0.1, 0.3, radius=0.05, radius_minor=0.1, align_semicircle=True)
plot.show()

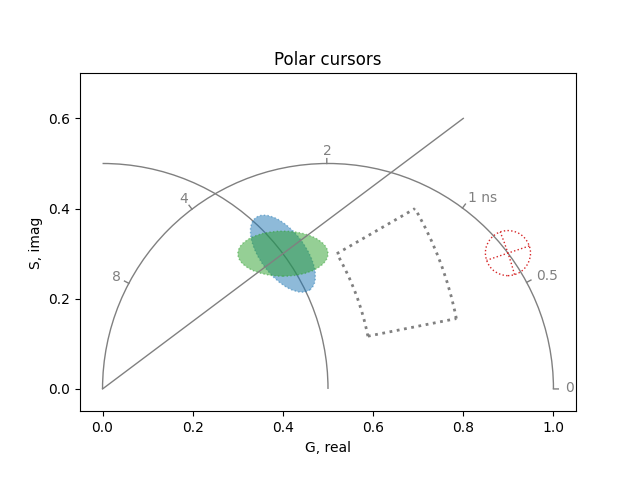

Alternatively, use polar coordinates with various options:

plot = PhasorPlot(frequency=80.0, title='Polar cursors')
plot.polar_cursor(0.6435, 0.5, linestyle='-')
plot.polar_cursor(0.5236, 0.6, 0.1963, 0.8, linewidth=2)
plot.polar_cursor(0.3233, 0.9482, radius=0.05, color='tab:red')
plot.polar_cursor(
    0.6435,
    0.5,
    radius=0.05,
    radius_minor=0.1,
    color='tab:blue',
    fill=True,
    alpha=0.5,
)
plot.polar_cursor(
    0.6435,
    0.5,
    radius=0.1,
    radius_minor=0.05,
    angle=0.0,
    color='tab:green',
    fill=True,
    alpha=0.5,
)
plot.show()

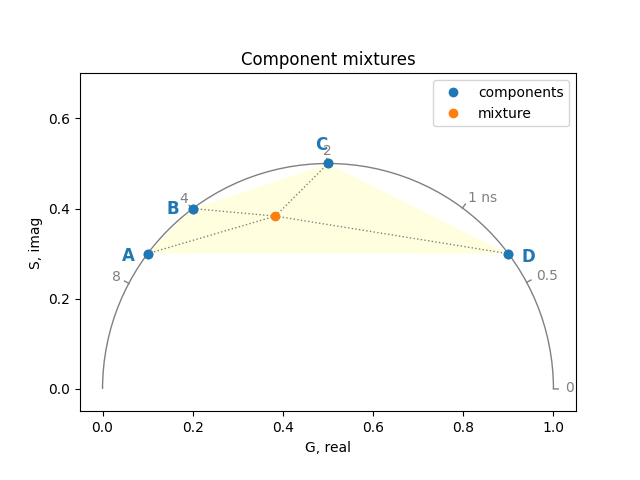

Component mixtures

Show linear combinations of phasor coordinates or ranges thereof:

real, imag, weights = numpy.array(
    [[0.1, 0.2, 0.5, 0.9], [0.3, 0.4, 0.5, 0.3], [2, 1, 2, 1]]
)

plot = PhasorPlot(frequency=80.0, title='Component mixtures')
plot.components(
    real,
    imag,
    linestyle='',
    marker='o',
    labels=['A', 'B', 'C', 'D'],
    color='tab:blue',
    fill=True,
    facecolor='lightyellow',
    label='components',
)
plot.components(real, imag, weights, marker='o', label='mixture')
plot.show()

Two-dimensional histogram

Plot large number of phasor coordinates as a two-dimensional histogram:

real, imag = numpy.random.multivariate_normal(
    (0.6, 0.4), [[3e-3, -1e-3], [-1e-3, 1e-3]], (256, 256)
).T
plot = PhasorPlot(frequency=80.0, title='Two-dimensional histogram')
plot.hist2d(real, imag)
plot.show()

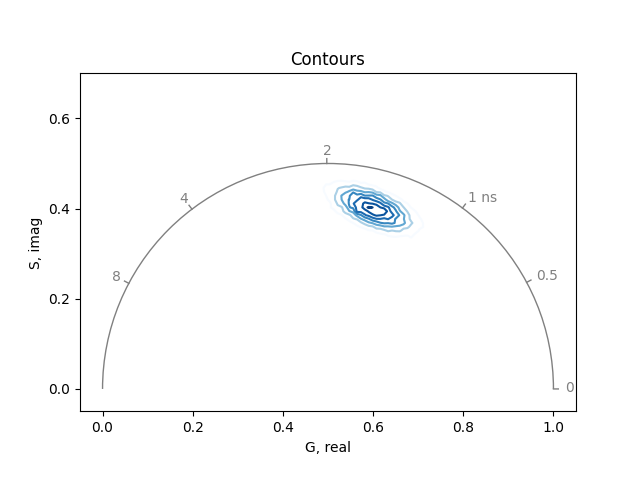

Contours

Plot the contours of the density of phasor coordinates:

plot = PhasorPlot(frequency=80.0, title='Contours')
plot.contour(real, imag)
plot.show()

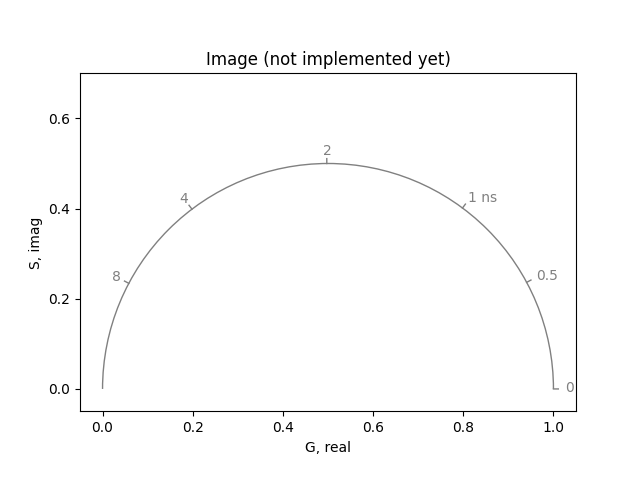

Plot a custom-colored image of a two-dimensional histogram (not implemented):

plot = PhasorPlot(frequency=80.0, title='Image (not implemented yet)')
# plot.imshow(image)
plot.show()

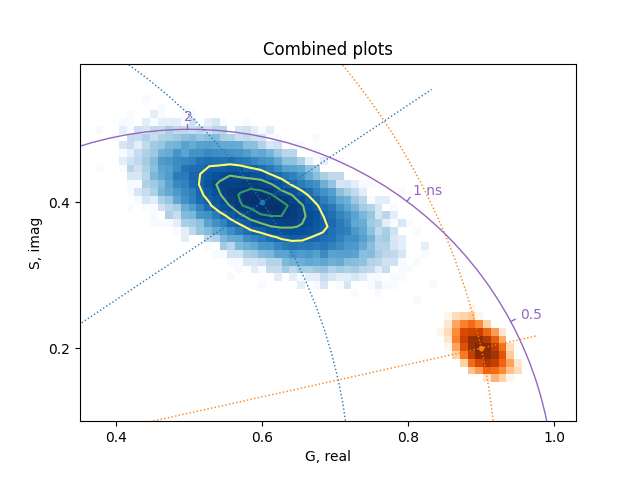

Combined plots

Multiple plots can be combined:

real2, imag2 = numpy.random.multivariate_normal(
    (0.9, 0.2), [[2e-4, -1e-4], [-1e-4, 2e-4]], 4096
).T

plot = PhasorPlot(
    title='Combined plots', xlim=(0.35, 1.03), ylim=(0.1, 0.59), grid=False
)
plot.hist2d(real, imag, bins=64, cmap='Blues')
plot.contour(real, imag, bins=48, levels=3, cmap='summer_r', norm='log')
plot.hist2d(real2, imag2, bins=64, cmap='Oranges')
plot.plot(0.6, 0.4, '.', color='tab:blue')
plot.plot(0.9, 0.2, '.', color='tab:orange')
plot.cursor(0.9, 0.2, color='tab:orange')
plot.polar_cursor(math.atan2(0.4, 0.6), math.hypot(0.6, 0.4), color='tab:blue')
plot.semicircle(frequency=80.0, color='tab:purple')
plot.show()

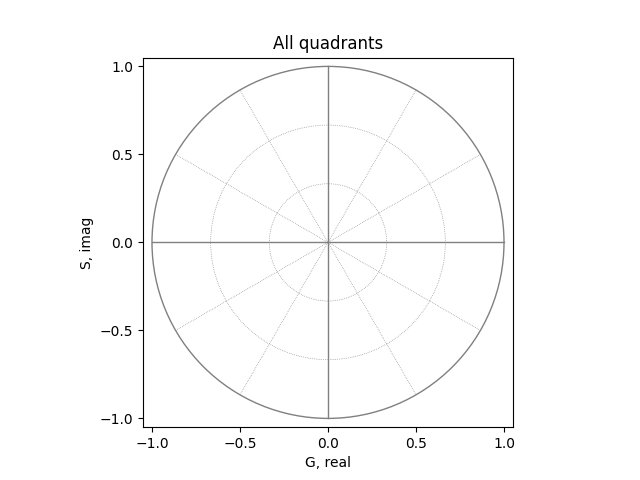

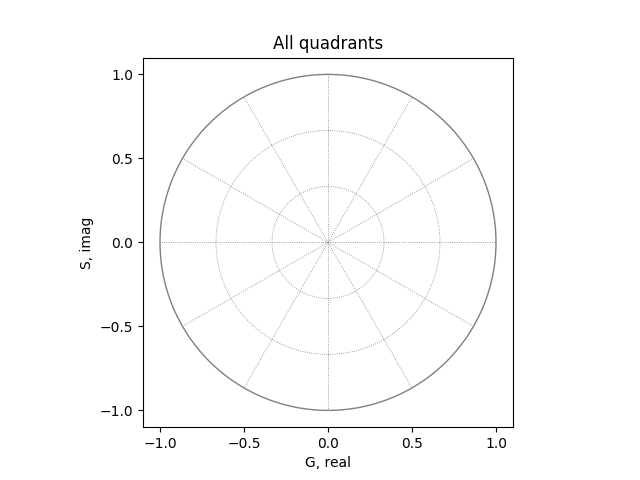

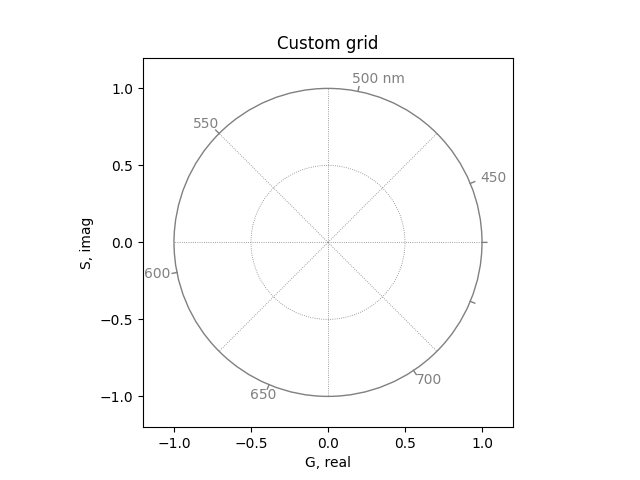

All quadrants

Create an empty phasor plot showing all four quadrants:

plot = PhasorPlot(allquadrants=True, title='All quadrants')
plot.show()

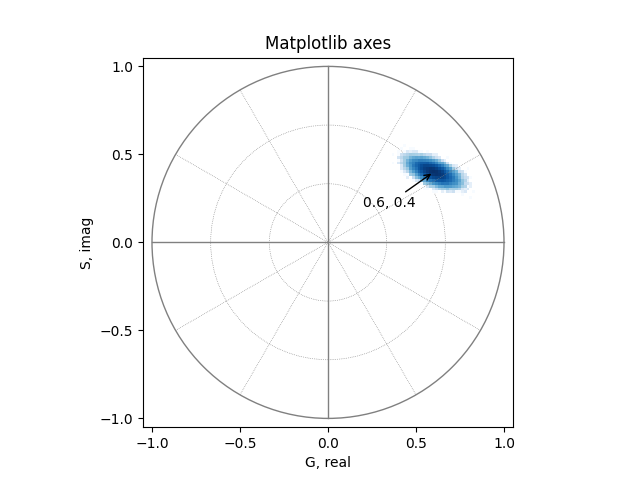

Matplotlib axes

The PhasorPlot class can use an existing matlotlib axes. The PhasorPlot.ax attribute provides access to the underlying matplotlib axes, for example, to add annotations:

from matplotlib import pyplot

ax = pyplot.subplot(1, 1, 1)
plot = PhasorPlot(ax=ax, allquadrants=True, title='Matplotlib axes')
plot.hist2d(real, imag, cmap='Blues')
plot.ax.annotate(
    '0.6, 0.4',
    xy=(0.6, 0.4),
    xytext=(0.2, 0.2),
    arrowprops=dict(arrowstyle='->'),
)
pyplot.show()

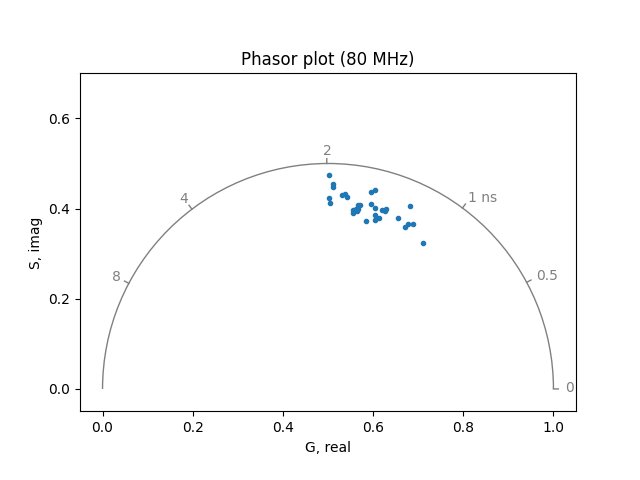

plot_phasor function

The phasorpy.plot.plot_phasor() function provides a simpler alternative to plot phasor coordinates in a single statement:

from phasorpy.plot import plot_phasor

plot_phasor(real[0, :32], imag[0, :32], marker='.', frequency=80.0)
