Multi-harmonic phasor coordinates

An introduction to handling multi-harmonic phasor coordinates.

This tutorial is an adaptation of Introduction to PhasorPy, focusing on the calculation, calibration, filtering, thresholding, storage, and visualization of multi-harmonic phasor coordinates.

Import required modules and functions:

import numpy

from phasorpy.datasets import fetch
from phasorpy.io import (
    phasor_from_ometiff,
    phasor_to_ometiff,
    read_imspector_tiff,
)
from phasorpy.phasor import (
    phasor_calibrate,
    phasor_filter_median,
    phasor_from_signal,
    phasor_threshold,
)
from phasorpy.plot import plot_phasor

Read signal from file

Read a time-correlated single photon counting (TCSPC) histogram, acquired at 80.11 MHz, from a file:

signal = read_imspector_tiff(fetch('Embryo.tif'))
frequency = signal.attrs['frequency']

Calculate phasor coordinates

Phasor coordinates at multiple harmonics can be calculated at once from the signal. The histogram samples are in the first dimension of the signal (axis=0). The first and second harmonics are calculated in this example:

mean, real, imag = phasor_from_signal(signal, harmonic=[1, 2], axis=0)

The two harmonics are in the first dimension of the phasor coordinates, real and imag:

print(mean.shape, real.shape, imag.shape)

(512, 512) (2, 512, 512) (2, 512, 512)

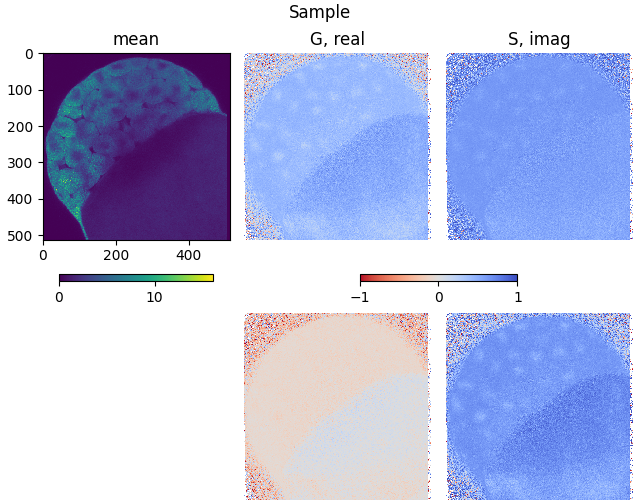

Plot the calculated phasor coordinates:

from phasorpy.plot import plot_phasor_image

plot_phasor_image(mean, real, imag, title='Sample')

To calculate all harmonics, use harmonic='all':

_ = phasor_from_signal(signal, harmonic='all', axis=0)

Calibrate phasor coordinates

A homogeneous solution of Fluorescein with a fluorescence lifetime of 4.2 ns was imaged as a reference for calibration:

reference_signal = read_imspector_tiff(fetch('Fluorescein_Embryo.tif'))
assert reference_signal.attrs['frequency'] == frequency

Calculate phasor coordinates from the measured reference signal at the first and second harmonics:

reference_mean, reference_real, reference_imag = phasor_from_signal(
    reference_signal, harmonic=[1, 2], axis=0
)

Calibration can be performed at all harmonics simultaneously. Calibrate the raw phasor coordinates with the reference coordinates of known lifetime (4.2 ns), at the first and second harmonics:

real, imag = phasor_calibrate(
    real,
    imag,
    reference_mean,
    reference_real,
    reference_imag,
    frequency=frequency,
    harmonic=[1, 2],
    lifetime=4.2,
)

If necessary, the calibration can be undone/reversed using the same reference:

uncalibrated_real, uncalibrated_imag = phasor_calibrate(
    real,
    imag,
    reference_mean,
    reference_real,
    reference_imag,
    frequency=frequency,
    harmonic=[1, 2],
    lifetime=4.2,
    reverse=True,
)

numpy.testing.assert_allclose(
    (uncalibrated_real, uncalibrated_imag),
    phasor_from_signal(signal, harmonic=[1, 2], axis=0)[1:],
    atol=1e-3,
)

Filter phasor coordinates

Applying median filter to the calibrated phasor coordinates, often multiple times, improves contrast and reduces noise. The filter is applied independently to the real and imaginary components of the harmonics, but not to the average signal:

mean, real, imag = phasor_filter_median(mean, real, imag, size=3, repeat=2)

Pixels with low intensities are commonly excluded from analysis and visualization of phasor coordinates:

mean, real, imag = phasor_threshold(mean, real, imag, mean_min=1)

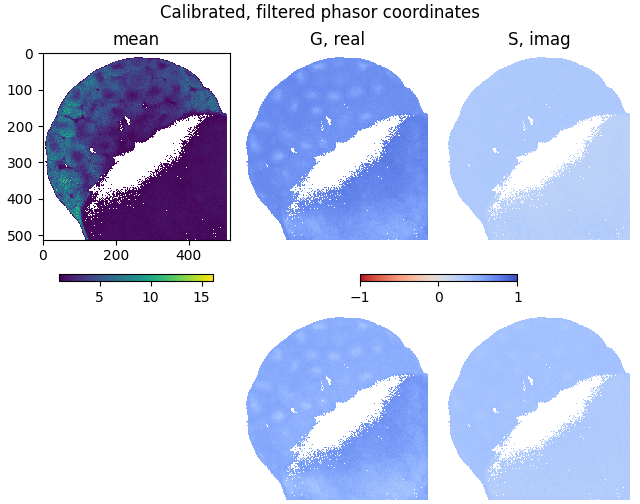

Show the calibrated, filtered phasor coordinates:

plot_phasor_image(
    mean, real, imag, title='Calibrated, filtered phasor coordinates'
)

Store phasor coordinates

Write the calibrated and filtered phasor coordinates at multiple harmonics, and the fundamental frequency to an OME-TIFF file:

phasor_to_ometiff(
    'phasors.ome.tif',
    mean,
    real,
    imag,
    frequency=frequency,
    harmonic=[1, 2],
    description=(
        'Phasor coordinates at first and second harmonics of a zebrafish '
        'embryo at day 3, calibrated, median-filtered, and thresholded.'
    ),
)

Read the phasor coordinates and metadata back from the OME-TIFF file:

mean_, real_, imag_, attrs = phasor_from_ometiff(
    'phasors.ome.tif', harmonic='all'
)

numpy.allclose(real_, real)
assert real_.dtype == numpy.float32
assert attrs['frequency'] == frequency
assert attrs['harmonic'] == [1, 2]
assert attrs['description'].startswith(
    'Phasor coordinates at first and second harmonics'
)

Plot phasor coordinates

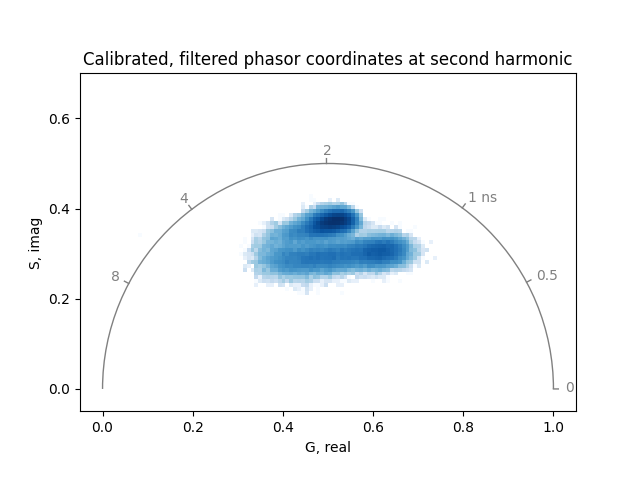

Visualize the 2D histogram of the calibrated and filtered phasor coordinates at the second harmonic:

plot_phasor(
    real[1],
    imag[1],
    frequency=frequency,
    title='Calibrated, filtered phasor coordinates at second harmonic',
)

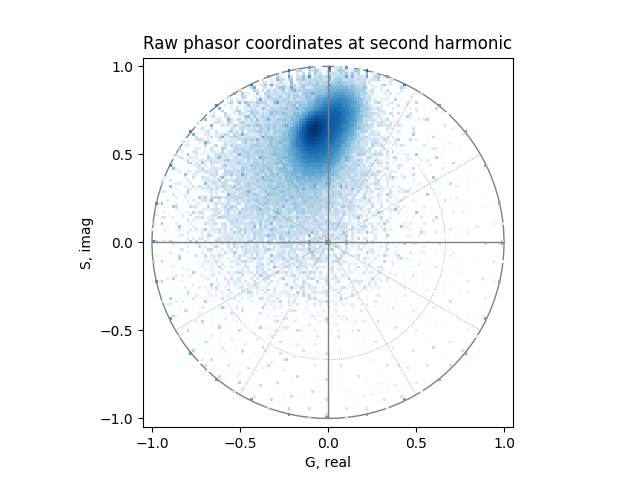

For comparison, the uncalibrated, unfiltered phasor coordinates at the second harmonic:

plot_phasor(
    uncalibrated_real[1],
    uncalibrated_imag[1],
    frequency=frequency,
    allquadrants=True,
    title='Raw phasor coordinates at second harmonic',
)

Component analysis

# TODO
