File input/output

Read and write phasor-related data from and to various file formats.

The phasorpy.io module provides functions to read phasor coordinates, TCSPC time-delay histograms, cross-correlation phase histograms, hyperspectral image stacks, lifetime images, and relevant metadata from various file formats used in bio-imaging. The module also includes functions to write phasor coordinates to OME-TIFF and SimFCS Referenced files.

Import required modules and functions:

import math
import os
from tempfile import TemporaryDirectory

import numpy
from numpy.testing import assert_allclose

from phasorpy.phasor import (
    phasor_calibrate,
    phasor_filter_median,
    phasor_from_signal,
    phasor_threshold,
    phasor_to_apparent_lifetime,
    phasor_transform,
)
from phasorpy.plot import (
    plot_histograms,
    plot_phasor,
    plot_phasor_image,
    plot_signal_image,
)

Sample files

PhasorPy provides access to curated sample files in various formats that are shared publicly on Zenodo, Figshare, and GitHub repositories. The files can be accessed using the phasorpy.datasets.fetch() function, which transparently downloads files and caches them locally. The function returns the path to the downloaded file:

from phasorpy.datasets import fetch  # isort: skip

filename = fetch('FLIM_testdata.lif')
print(filename)

/home/runner/.cache/phasorpy/FLIM_testdata.lif

Consider contributing datasets to the PhasorPy Community on Zenodo.

Leica LIF and XLEF

Leica image files (LIF and XLEF) are written by Leica LAS X software. They contain collections of multi-dimensional images and metadata from a variety of microscopy acquisition and analysis modes.

PhasorPy currently supports reading hyperspectral images, phasor coordinates, and lifetime images from Leica image files via the liffile library.

LIF FLIM

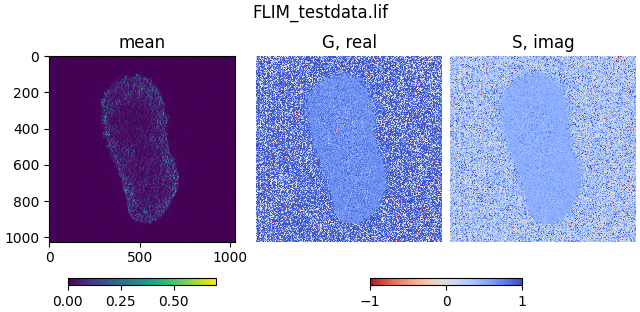

Leica image files, acquired on a FALCON microscope and analyzed with LAS X software, contain calculated phasor coordinates, lifetime images, and relevant metadata. The phasorpy.io.phasor_from_lif() and phasorpy.io.lifetime_from_lif() functions are used to read those data from the FLIM_testdata dataset:

from phasorpy.io import lifetime_from_lif, phasor_from_lif

filename = 'FLIM_testdata.lif'

mean, real, imag, attrs = phasor_from_lif(fetch(filename))

plot_phasor_image(mean, real, imag, title=filename)

The returned mean intensity and uncalibrated phasor coordinates are NumPy arrays. attrs is a dictionary holding metadata, including the auto-reference phase (in degrees) and modulation for all image channels, as well as the fundamental laser frequency (in MHz):

frequency = attrs['frequency']
channel_0 = attrs['flim_phasor_channels'][0]
reference_phase = channel_0['AutomaticReferencePhase']
reference_modulation = channel_0['AutomaticReferenceAmplitude']
intensity_min = channel_0['IntensityThreshold'] / attrs['samples']

These metadata are used to calibrate and threshold the phasor coordinates:

real, imag = phasor_transform(
    real, imag, -math.radians(reference_phase), 1 / reference_modulation
)

mean, real, imag = phasor_threshold(mean, real, imag, mean_min=intensity_min)

plot_phasor(
    real,
    imag,
    frequency=frequency,
    title=f'{filename} ({frequency} MHz)',
    cmin=10,
)

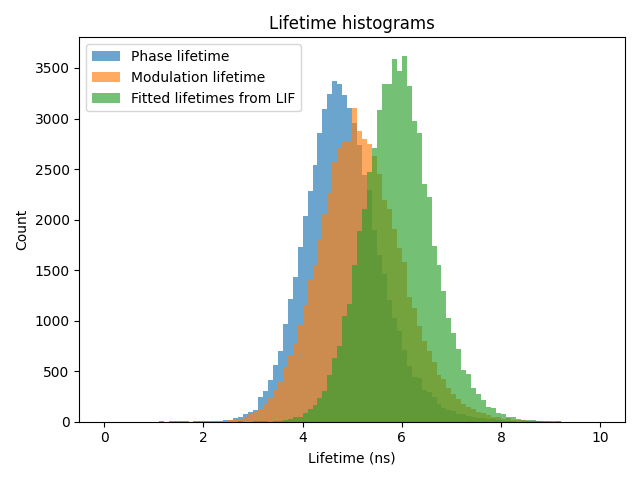

Apparent single lifetimes are calculated from the calibrated phasor coordinates and compared to the lifetimes calculated by LAS X software:

phase_lifetime, modulation_lifetime = phasor_to_apparent_lifetime(
    real, imag, frequency
)

fitted_lifetime = lifetime_from_lif(fetch(filename))[0]
fitted_lifetime[numpy.isnan(mean)] = numpy.nan

plot_histograms(
    phase_lifetime,
    modulation_lifetime,
    fitted_lifetime,
    range=(0, 10),
    bins=100,
    alpha=0.66,
    title='Lifetime histograms',
    xlabel='Lifetime (ns)',
    ylabel='Count',
    labels=[
        'Phase lifetime',
        'Modulation lifetime',
        'Fitted lifetimes from LIF',
    ],
)

The apparent single lifetimes from phase and modulation do not exactly match. Most likely there is more than one lifetime component in the sample. This could also explain the difference from the lifetimes fitted by the LAS X software.

Note

Reading of FLIM/TCSPC histograms from LIF-FLIM files is currently not supported because the storage scheme is undocumented or patent-pending. However, TTTR records can be exported to PTU format using LAS X software.

LIF hyperspectral

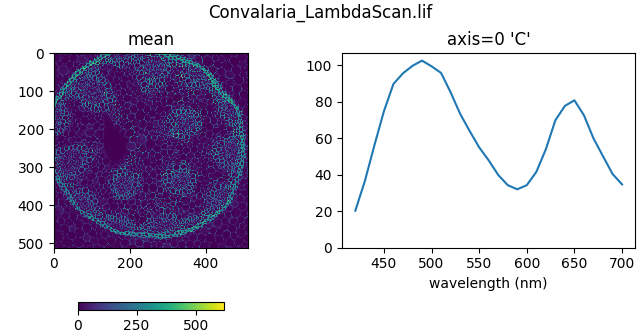

The phasorpy.io.signal_from_lif() function is used to read an image stack from the Convallaria hyperspectral dataset acquired at 29 emission wavelengths:

from phasorpy.io import signal_from_lif

filename = 'Convalaria_LambdaScan.lif'

signal = signal_from_lif(fetch(filename))

plot_signal_image(signal, title=filename, vmin=0, xlabel='wavelength (nm)')

Emission wavelengths (in nm) are available in the coordinates of the channel axis:

print(signal.coords['C'].values.astype(int))

[420 430 440 450 460 470 480 489 500 510 520 530 540 550 560 570 580 590
 600 610 620 630 640 650 660 670 680 690 700]

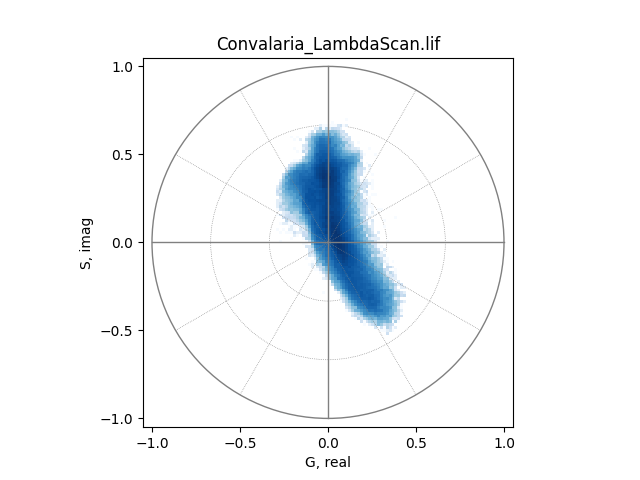

Plot the first harmonic phasor coordinates after applying a median filter:

plot_phasor(
    *phasor_threshold(
        *phasor_filter_median(*phasor_from_signal(signal)), mean_min=1
    )[1:],
    allquadrants=True,
    title=filename,
)

PicoQuant PTU

PicoQuant PTU files are written by PicoQuant SymPhoTime, Leica LAS X, and other software. The files contain time-correlated single-photon counting (TCSPC) measurement data and instrumentation parameters.

PhasorPy supports reading TCSPC histograms from PTU files acquired in T3 imaging mode via the ptufile library.

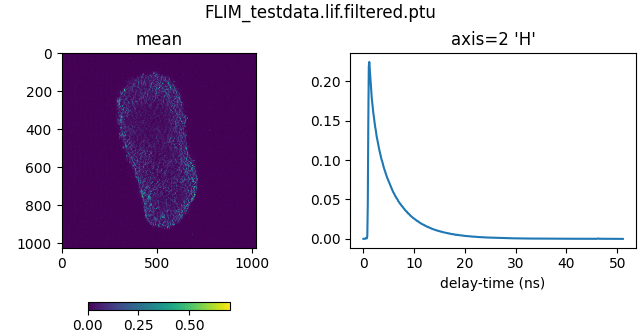

The phasorpy.io.signal_from_ptu() function is used to read the TCSPC histogram from a PTU file exported from the FLIM_testdata dataset with the Leica LAS X software. By default, the function returns a 5-dimensional image with dimension order TYXCH. Channel and frames are specified to reduce the dimensionality:

from phasorpy.io import signal_from_ptu

filename = 'FLIM_testdata.lif.ptu'

signal = signal_from_ptu(fetch(filename), channel=0, frame=0, keepdims=False)

plot_signal_image(signal, title=filename, xlabel='delay-time (ns)')

The TCSPC histogram contains more photons than the phasor intensity image stored in the LIF-FLIM file. The LAS X software likely applies a filter to the TCSPC histogram before phasor analysis.

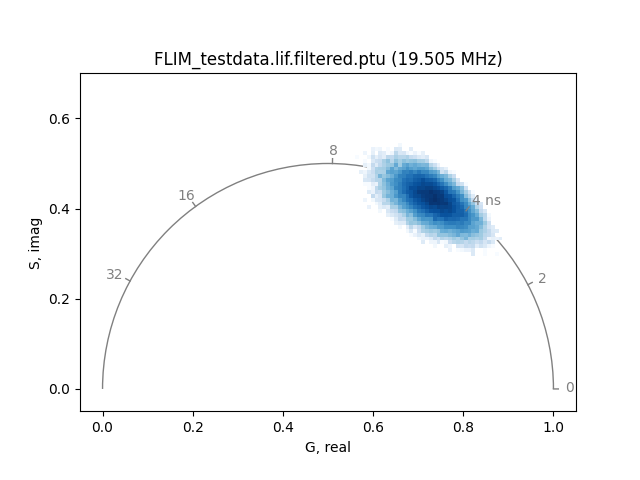

The returned signal is an xarray.DataArray holding the TCSPC histogram as a NumPy array, and metadata as a dictionary in the attrs property. The metadata includes all PTU tags and the fundamental laser frequency, which is needed to interpret the phasor coordinates. The reference phase and modulation previously loaded from the LIF-FLIM file are again used to calibrate the phasor coordinates. The same intensity threshold is applied:

frequency = signal.attrs['frequency']
assert frequency == attrs['frequency']  # frequency matches LIF metadata

mean, real, imag = phasor_from_signal(signal)

real, imag = phasor_transform(
    real, imag, -math.radians(reference_phase), 1 / reference_modulation
)

mean, real, imag = phasor_threshold(mean, real, imag, mean_min=intensity_min)

plot_phasor(
    real,
    imag,
    frequency=frequency,
    title=f'{filename} ({frequency} MHz)',
    cmin=10,
)

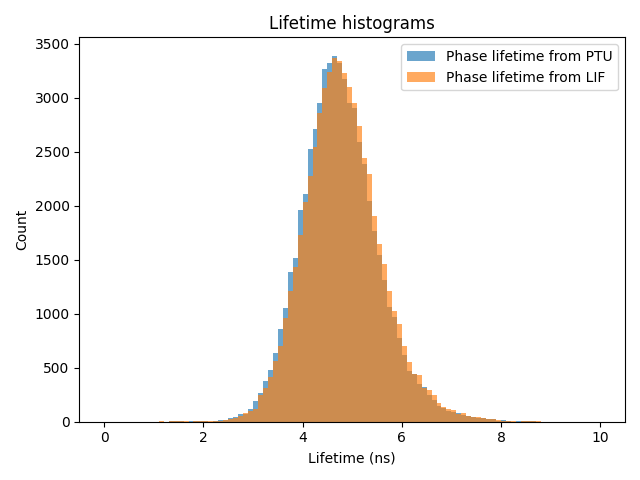

Compare the apparent single lifetimes calculated from the PTU file with the lifetimes previously read from the LIF-FLIM file:

plot_histograms(
    phasor_to_apparent_lifetime(real, imag, frequency)[0],
    phase_lifetime,
    range=(0, 10),
    bins=100,
    alpha=0.66,
    title='Lifetime histograms',
    xlabel='Lifetime (ns)',
    ylabel='Count',
    labels=['Phase lifetime from PTU', 'Phase lifetime from LIF'],
)

Zeiss CZI

Carl Zeiss image files (CZI) are written by Zeiss ZEN software. They contain images and metadata from a variety of microscopy acquisition and analysis modes, including hyperspectral imaging.

PhasorPy does not currently support reading CZI files. However, hyperspectral images can be read from CZI files using, for example, the pylibCZIrw or BioIO libraries. Another option is to export CZI files as LSM using the ZEN software.

Zeiss LSM

Carl Zeiss LSM files, a predecessor of the CZI format, are written by Zeiss ZEN software. They contain images and metadata from laser-scanning microscopy.

PhasorPy supports reading hyperspectral image data from Zeiss LSM files via the tifffile library.

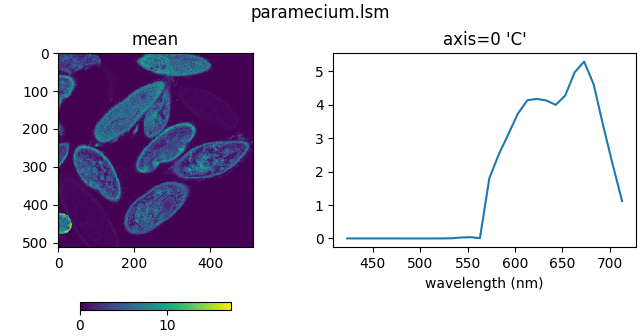

The phasorpy.io.signal_from_lsm() function is used to read a hyperspectral dataset with 30 emission wavelengths:

from phasorpy.io import signal_from_lsm

filename = 'paramecium.lsm'

signal = signal_from_lsm(fetch('paramecium.lsm'))

plot_signal_image(signal, title=filename, xlabel='wavelength (nm)')

Emission wavelengths (in nm) are available in the coordinates of the channel axis:

print(signal.coords['C'].values.astype(int))

[423 433 443 453 463 473 483 493 503 513 523 533 543 553 563 573 583 593
 603 613 623 633 643 653 663 673 683 693 703 713]

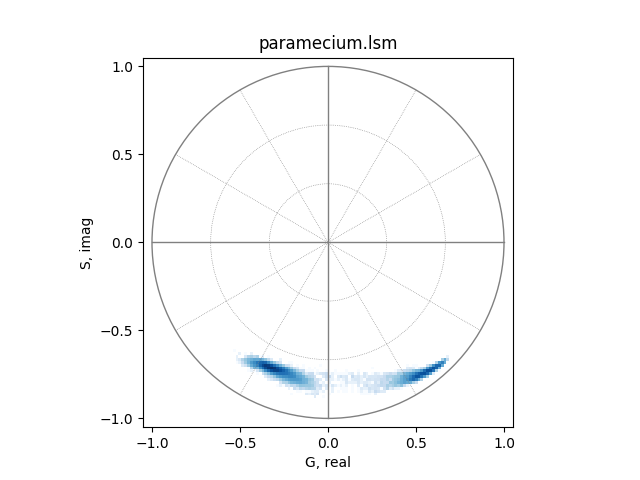

Plot the first harmonic phasor coordinates after applying a median filter:

plot_phasor(
    *phasor_threshold(
        *phasor_filter_median(*phasor_from_signal(signal)), mean_min=1
    )[1:],
    allquadrants=True,
    title=filename,
)

Becker & Hickl SDT

SDT files are written by Becker & Hickl software. They may contain TCSPC histograms and metadata from laser-scanning microscopy.

PhasorPy supports reading TCSPC histograms from FBD files via the lfdfiles library.

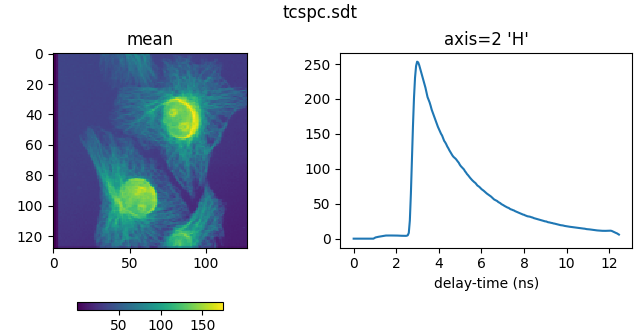

The phasorpy.io.signal_from_sdt() function is used to read a TCSPC histogram from a SDT file:

from phasorpy.io import signal_from_sdt

filename = 'tcspc.sdt'

signal = signal_from_sdt(fetch(filename))

plot_signal_image(signal, title=filename, xlabel='delay-time (ns)')

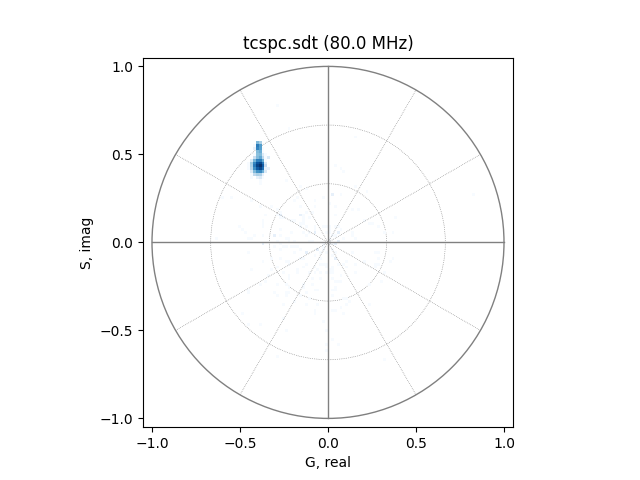

Plot the uncalibrated phasor coordinates:

frequency = signal.attrs['frequency']

plot_phasor(
    *phasor_from_signal(signal)[1:],
    title=f'{filename} ({frequency:.1f} MHz)',
    allquadrants=True,
    style='hist2d',
)

Todo

No accompanying IRF dataset is available to calibrate the phasor coordinates.

FLIMbox FBD

FLIMbox data files, FBD, are written by SimFCS and ISS software. They contain encoded cross-correlation phase histograms from digital frequency-domain measurements acquired with a FLIMbox device. Newer file versions also contain metadata.

The FBD file format is undocumented, not standardized, and files are frequently found corrupted. It is recommended to export FLIMbox data to another format from the software used to acquire the data.

PhasorPy supports reading some FLIMbox FBD files via the lfdfiles library.

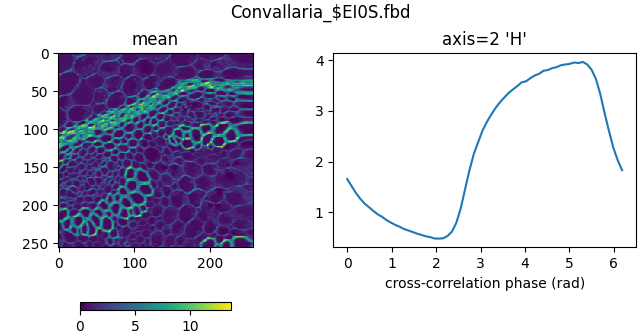

The phasorpy.io.signal_from_fbd() function is used to read a phase histograms from the Convallaria FBD dataset, which was acquired at the second harmonic. The dataset is a time series of two channels. Since the photon count is low and the second channel empty, only the first channel is read and the time-axis integrated:

from phasorpy.io import signal_from_fbd

filename = 'Convallaria_$EI0S.fbd'

signal = signal_from_fbd(fetch(filename), frame=-1, channel=0)

frequency = signal.attrs['frequency'] * signal.attrs['harmonic']
print(signal.sizes)

plot_signal_image(
    signal, title=filename, xlabel='cross-correlation phase (rad)'
)

Frozen({'T': 1, 'C': 1, 'Y': 256, 'X': 256, 'H': 64})

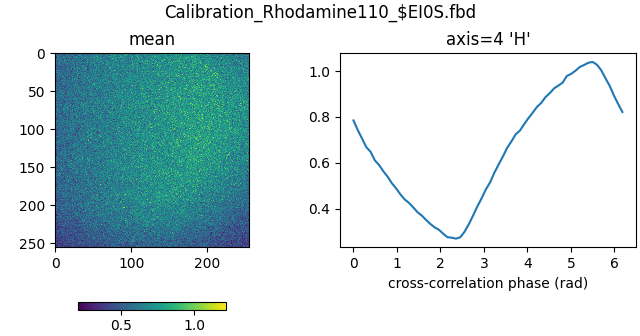

The measurement of a solution of Rhodamine 110 with known lifetime of 4 ns is used as a calibration reference:

reference_filename = 'Calibration_Rhodamine110_$EI0S.fbd'

reference_signal = signal_from_fbd(
    fetch(reference_filename), frame=-1, channel=0
)
reference_lifetime = 4.0

plot_signal_image(
    reference_signal,
    title=reference_filename,
    xlabel='cross-correlation phase (rad)',
)

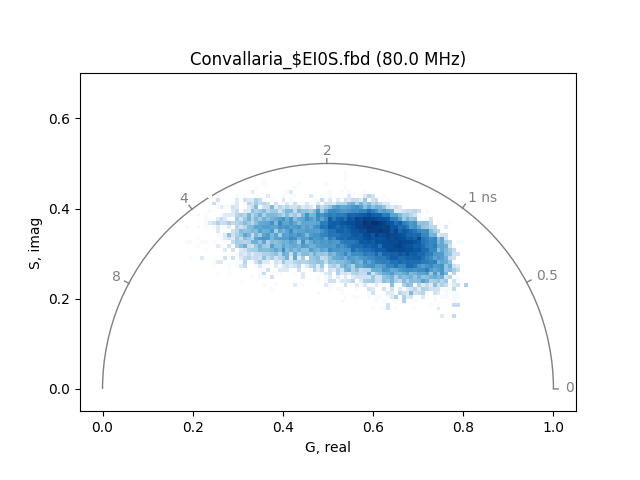

Phasor coordinates are calculated from the signal and calibrated with the reference signal:

mean, real, imag = phasor_from_signal(signal)

real, imag = phasor_calibrate(
    real,
    imag,
    *phasor_from_signal(reference_signal),
    frequency,
    reference_lifetime,
)

plot_phasor(
    *phasor_threshold(
        *phasor_filter_median(mean, real, imag, repeat=3), mean_min=1
    )[1:],
    title=f'{filename} ({frequency} MHz)',
    frequency=frequency,
)

FLIM LABS JSON

FLIM LABS JSON files are written by FLIM Studio software. They contain multi-channel TCSPC histogram images, optional calibrated multi-harmonic phasor coordinates, and metadata from digital frequency-domain measurements.

The phasorpy.io.signal_from_flimlabs_json() function is used to read a TCSPC histogram from the Convallaria FLIM LABS dataset, which contains a single channel:

from phasorpy.io import signal_from_flimlabs_json

channel = 0
filename = 'Convallaria_m2_1740751781_phasor_ch1.json'

signal = signal_from_flimlabs_json(fetch(filename), channel=channel)

plot_signal_image(signal, title=filename, xlabel='delay-time (ns)')

Phasor coordinates are calculated from the TCSPC histogram at three harmonics and calibrated using the metadata in signal.attrs and the TCSPC histogram from the measurement of a Fluorescein solution of known lifetime:

harmonic = [1, 2, 3]
frequency = signal.attrs['frequency']
reference_lifetime = signal.attrs['flimlabs_header']['tau_ns']

mean, real, imag = phasor_from_signal(signal, harmonic=harmonic)

reference_mean, reference_real, reference_imag = phasor_from_signal(
    signal_from_flimlabs_json(
        fetch('Fluorescein_Calibration_m2_1740751189_imaging.json'),
        channel=channel,
    ),
    harmonic=harmonic,
)

real, imag = phasor_calibrate(
    real,
    imag,
    reference_mean,
    reference_real,
    reference_imag,
    frequency,
    reference_lifetime,
    harmonic=harmonic,
)

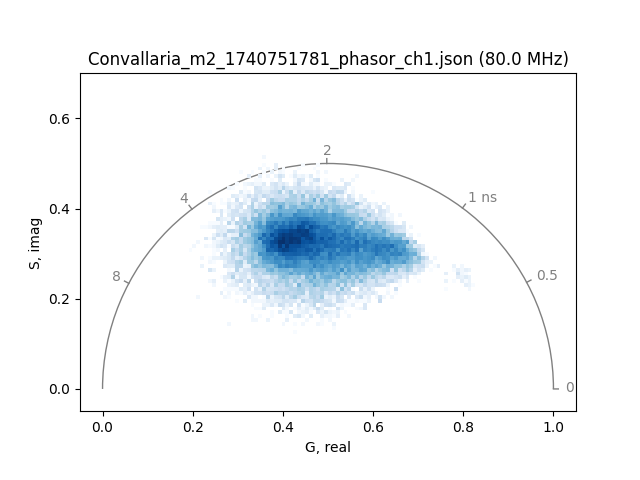

Plot the second harmonic phasor coordinates:

plot_phasor(
    real[1],
    imag[1],
    frequency=frequency * 2,
    title=f'{filename} ({frequency * 2:.1f} MHz)',
    cmin=10,
)

Newer versions of the FLIM LABS JSON files may also contain calibrated phasor coordinates, possibly at multiple harmonics, which can be read using the phasorpy.io.phasor_from_flimlabs_json() function:

from phasorpy.io import phasor_from_flimlabs_json

mean_fromfile, real_fromfile, imag_fromfile, attrs = phasor_from_flimlabs_json(
    fetch(filename), channel=channel, harmonic='all'
)

assert attrs['harmonic'] == [1, 2, 3]
assert_allclose(mean, mean_fromfile, atol=1e-3)
assert_allclose(real, real_fromfile, atol=1e-3, equal_nan=True)
assert_allclose(imag, imag_fromfile, atol=1e-3, equal_nan=True)

The reference phase, modulation, and lifetime used to calibrate the phasor coordinates may also be found in an accompanying JSON file:

import json

with open(
    fetch('Fluorescein_Calibration_m2_1740751189_imaging_calibration.json'),
    'rb',
) as fh:
    attrs = json.load(fh)

calibration = numpy.asarray(attrs['calibrations'][channel])
reference_phase = -calibration[:, 0, None, None]
reference_modulation = 1 / calibration[:, 1, None, None]
reference_lifetime = attrs['tau_ns']
frequency = attrs['frequency_mhz']

ISS IFLI

IFLI files are written by ISS VistaVision software. They contain calibrated phasor coordinates from analog or digital frequency-domain fluorescence lifetime measurements. IFLI datasets can be up to 9-dimensional in the order of mean/real/imag, frequency, position, emission wavelength, time, channel, Z, Y, and X.

PhasorPy supports reading ISS IFLI files via the lfdfiles library.

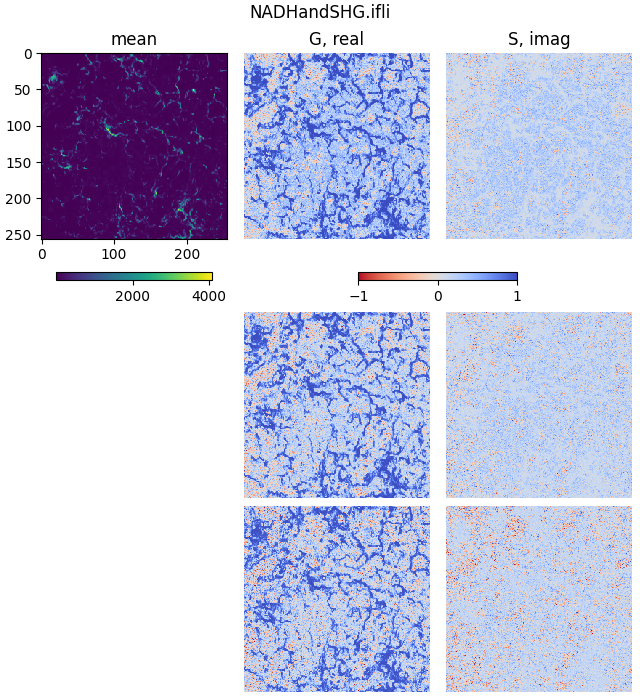

The phasorpy.io.phasor_from_ifli() function is used to read calibrated phasor coordinates from a measurement of mouse liver fed with Western diet. Select the second channel and first three harmonics:

from phasorpy.io import phasor_from_ifli

filename = 'NADHandSHG.ifli'

mean, real, imag, attrs = phasor_from_ifli(
    fetch(filename),
    harmonic='all',
    channel=1,  # NADH channel
)

plot_phasor_image(mean, real, imag, title=filename)

The first channel in the file contains an SHG image with phasor coordinates about zero:

assert (
    phasor_from_ifli(
        fetch(filename), harmonic='all', channel=0  # SHG channel
    )[1].mean()
    < 1e-2
)

The attrs dictionary holds metadata including the fundamental laser frequency, the harmonics in the phasor coordinates, and the reference phasor coordinates used for calibration:

frequency = attrs['frequency']
harmonic = attrs['harmonic']
reference_phasor = attrs['ifli_header']['RefDCPhasor']
reference_lifetime = attrs['ifli_header']['RefLifetime']

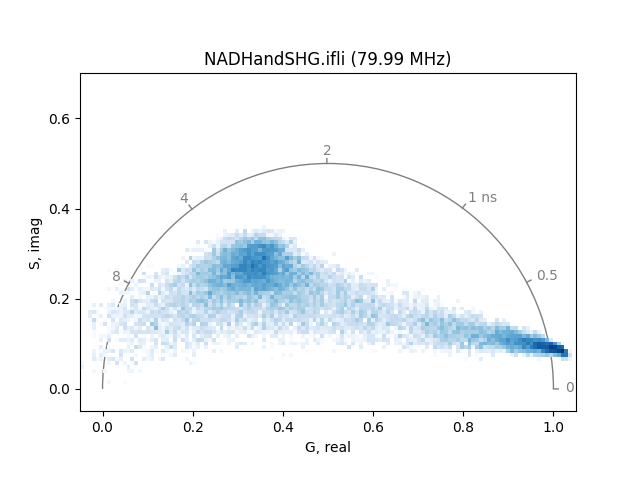

Plot the first harmonic phasor coordinates after applying a median filter:

plot_phasor(
    *phasor_filter_median(mean, real[0], imag[0], repeat=2)[1:],
    title=f'{filename} ({frequency:.2f} MHz)',
    frequency=frequency,
    cmin=10,
)

Three main lifetime components are expected in the sample: free NADH (~0.4 ns), bound NADH (3.4 ns) and a long lifetime species (~8 ns). It appears the calibration is off in this sample.

SimFCS REF and R64

Referenced files, REF and R64, are written by the SimFCS software and supported in several other software. The files most commonly contain a square-sized average intensity image and the calibrated phasor coordinates of the first two harmonics.

PhasorPy supports reading and writing SimFCS Referenced files via the lfdfiles library.

The phasorpy.io.phasor_from_simfcs_referenced() function is used to read calibrated phasor coordinates from a REF file from the LFD workshop dataset:

from phasorpy.io import phasor_from_simfcs_referenced

filename = 'capillaries1001.ref'

mean, real, imag, attrs = phasor_from_simfcs_referenced(
    fetch(filename), harmonic='all'
)

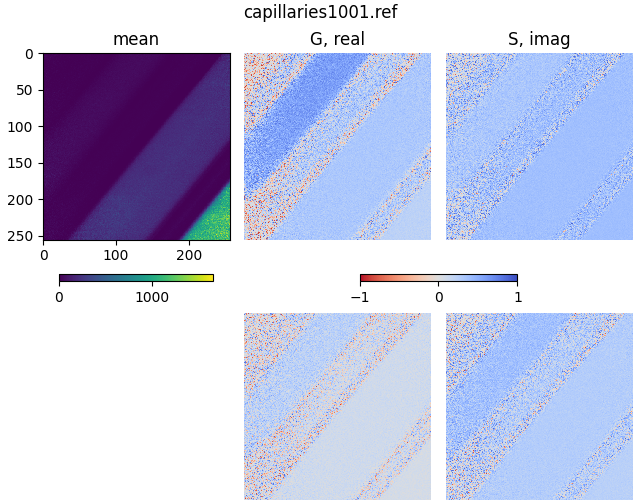

plot_phasor_image(mean, real, imag, title=filename)

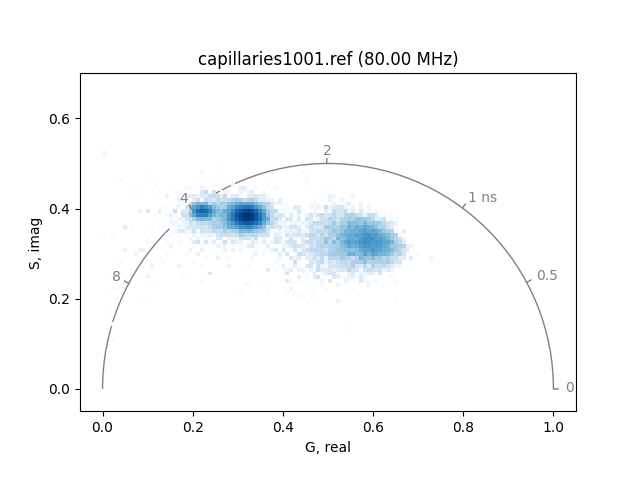

Plot the first harmonic phasor coordinates after applying a median filter. Since SimFCS Referenced files do not contain metadata, the frequency and harmonics must be known by the user:

frequency = 80.0  # MHz
harmonic = [1, 2]

plot_phasor(
    *phasor_threshold(
        *phasor_filter_median(mean, real[0], imag[0]),
        mean_min=25,
        real_min=1e-3,
    )[1:],
    title=f'{filename} ({frequency:.2f} MHz)',
    frequency=frequency,
    cmin=2,
)

The phasorpy.io.phasor_to_simfcs_referenced() function is used to write calibrated phasor coordinates to R64 files in a temporary directory. Images with more than two dimensions or larger than square size are chunked to square-sized images and saved to separate files. Images or chunks with less than two dimensions or smaller than square size are padded with NaN values:

from phasorpy.io import phasor_to_simfcs_referenced

with TemporaryDirectory() as tmpdir:

    filename = os.path.join(tmpdir, 'capillaries1001.r64')
    phasor_to_simfcs_referenced(filename, mean, real, imag, size=160)

    # print file names
    filenames = sorted(os.listdir(tmpdir))
    for filename in filenames:
        print(filename)

    # verify the first harmonic phasor coordinates in the last file
    assert_allclose(
        phasor_from_simfcs_referenced(os.path.join(tmpdir, filenames[-1]))[1],
        numpy.pad(real[0, 160:, 160:], (0, 64), constant_values=numpy.nan),
        atol=1e-3,
        equal_nan=True,
    )

capillaries1001_0_000_000.r64
capillaries1001_0_000_160.r64
capillaries1001_0_160_000.r64
capillaries1001_0_160_160.r64

PhasorPy OME-TIFF

PhasorPy can store phasor coordinates and select metadata in OME-TIFF formatted files, which are compatible with Bio-Formats, Fiji, and other software. The implementation is based on the tifffile library.

In comparison with the SimFCS R64 format, OME-TIFF can store higher dimensional, higher precision images of any size, any number of harmonics, and select metadata.

PhasorPy OME-TIFF files are intended for temporarily exchanging phasor coordinates with other software, not as a long-term storage solution. Always preserve original data files in their native formats.

The phasorpy.io.phasor_to_ometiff() and phasorpy.io.phasor_from_ometiff() functions are used to write and read back calibrated phasor coordinates to/from PhasorPy OME-TIFF files:

from phasorpy.io import phasor_from_ometiff, phasor_to_ometiff

filename = f'{filename}.ome.tiff'

with TemporaryDirectory() as tmpdir:

    phasor_to_ometiff(
        filename,
        mean,
        real,
        imag,
        frequency=frequency,
        dims='YX',
        description='Written by PhasorPy',
    )

    mean1, real1, imag1, attrs = phasor_from_ometiff(filename, harmonic='all')
    assert_allclose(mean, mean1)
    assert attrs['frequency'] == frequency
    assert attrs['harmonic'] == [1, 2]
    assert attrs['description'] == 'Written by PhasorPy'

Alternative import methods

While PhasorPy provides many functions to read phasor-related data and metadata from file formats commonly used in the field, it is by no means required to use those functions. Instead, any other means that yields image stacks in NumPy array compatible form can be used (for example) for advanced use cases, or when a file format is not supported by PhasorPy.

For example, most imaging software can export image data to generic TIFF files. The tifffile library is used to read a TCSPC histogram exported to a TIFF file by ImSpector software:

from tifffile import imread

filename = 'Embryo.tif'

image_stack = imread(fetch(filename))

Since the image stack array contains no domain-specific metadata, the fundamental frequency and the axis over which to calculate phasor coordinates must be known. In this case, the TCSPC histogram bins are in the first array dimension:

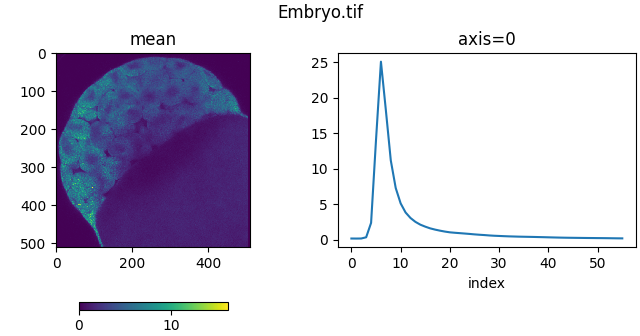

plot_signal_image(image_stack, axis=0, title=filename, xlabel='index')

mean, real, imag = phasor_from_signal(image_stack, axis=0)

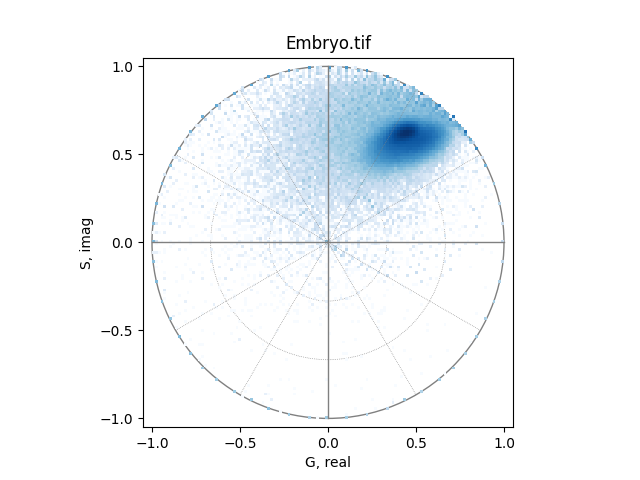

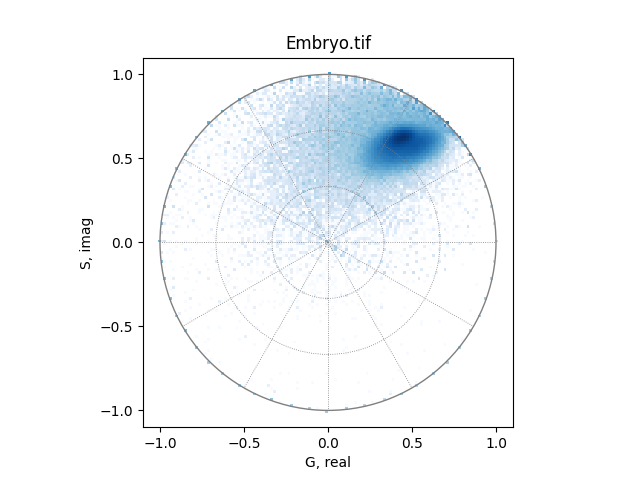

Plot the uncalibrated phasor coordinates:

plot_phasor(real, imag, frequency=80.0, allquadrants=True, title=filename)

sphinx_gallery_thumbnail_number = 3 mypy: allow-untyped-defs, allow-untyped-calls mypy: disable-error-code=”arg-type”
